Power Box
The
power box, attached to the front of the hydraulic power unit (HPU), is
responsible for:
- Interfacing with the Operator Interface Panel.
- Generating power for the Operator Interface Panel.
- Switching power to the electric motor.
The cable going to the Operator Interface Panel may be seen coming into the box from the bottom.

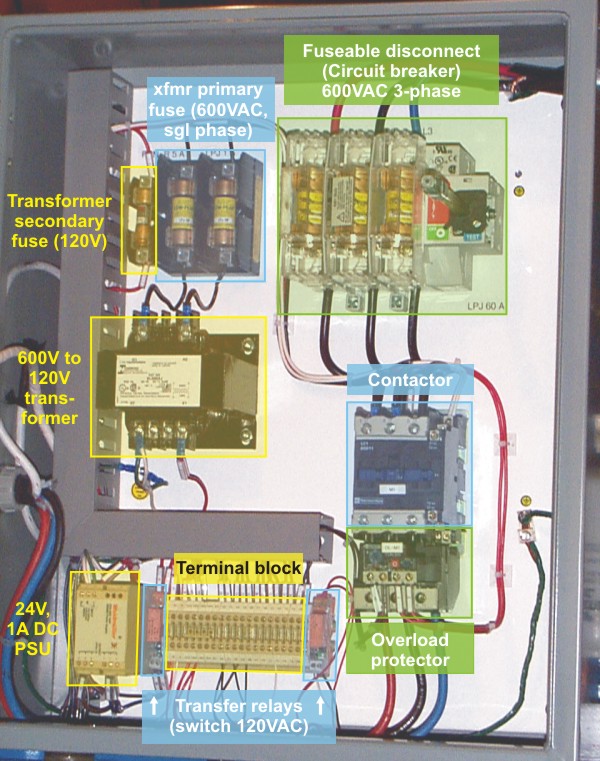

Below is a close-up view of the internals of the box, highlighting various sections. See this wiring diagram in PDF format.
