Bagnoli™-8 EMG System - Specifications
All electrodes and systems are tested and calibrated before shipment to ensure that manufacturing specifications have been met. Performance according to specifications is guaranteed for environments devoid of noise sources. Examples of common noise sources include electric motors (such as those found on treadmills and fans) and high current power supplies. Performance according to specifications cannot be guaranteed if DelSys devices are used in conjunction with other equipment that has not been reviewed and approved by DelSys Inc. Examples include proprietary A/D cards and electric exercise equipment.
Main Amplifier Specifications
| Electrical | |
| Amplification/ Channel (overall) | 0, 100, 1000, 10000, Custom (Aux) V/V (±1%) |
| Aux Amplification/ Channel (overall) | 1000 V/V (±1%) |
| Frequency Response | 20±5 Hz to 450±50 Hz |
| Aux Frequency Response | 20±5 Hz to 2000±50 Hz, +80 dB/dec; -60dB/dec |
| System Noise (R.T.I) | < 1.2 µV over specified BW |
| Maximum Output Voltage | ±5 Volts |
| Isolation | 3750 Vrms, 1 minute |
| Power Supply Leakage | < 100 µA |
| System Leakage Current | < 10 µA |
| Power Requirements | 12 VDC, 60 mA (quiescent) |
| Signal Quality Check | 50/60 Hz interference ±4.8 V saturation threshold |
| Mechanical | |
| Number of Channels | 8 |
| Output Connectors | 8 BNC |
| Operating Temperature | 15°C to 40°C ( 59°F to 104°F) |
| Case Dimension | 205 x 108 x 57 cm ( 8.08" x 4.26" x 1.52") |
| Weight | 820 g ( 1.8 lbs) |
| Signal Quality Warning | Yellow LED, selectable audible buzzer |
I/O Unit Specifications
| Number of Electrode Inputs | 8 |
| Electrode Input Connectors | Hypertronics 4-pin female |
| Output connector | Honda 50-pin female |
| Length of Tether | 8.3 m (25 ft.) |
| Case Dimensions | 89 mm x 83 mmx 32 mm (3.5" x 3.25" x 1.25") |
| Weight | 100 g ( 0.2 lbs) |
In-House Testing

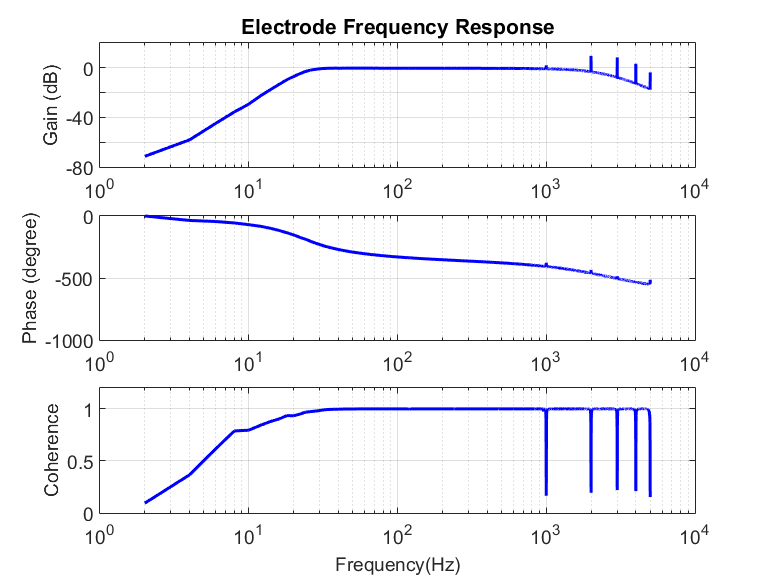

The figure below shows the frequency response obtained in REKLAB when an electrode was tested using the electrode tester with the Main Amplifier gain set to Aux. The BANDWIDTH SELECT on the electrode tester was set to 150kHz. (The MATLAB figure may be obtained here.)
Revised June 29, 2015
