Data Acquisition

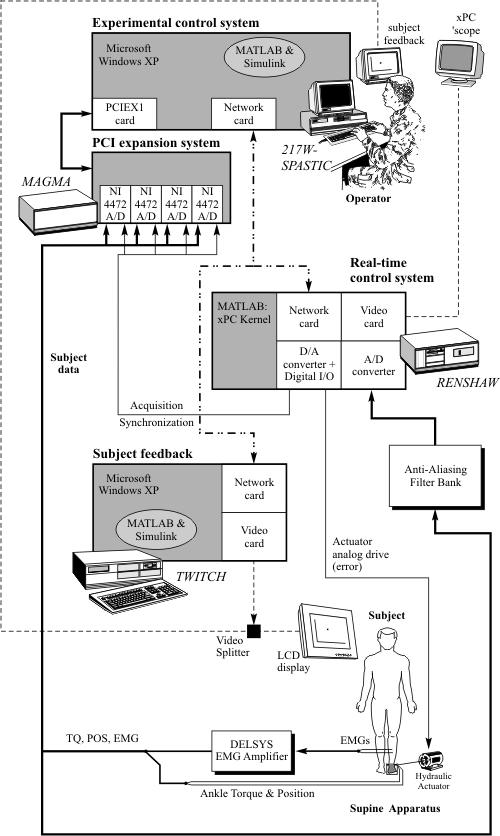

Block Diagram

Note: The above diagram does not include the Switch Module which allows signals to be switched in to SPASTIC and RENSAW from the supine and the (also not shown) standing apparatuses.

Components

• MAGMA™ PCI Expansion System
• NI 4472 User Manual (For boards with Rev E and lower.)
• NI 4472 User Manual (For boards with Rev. F and higher.)
